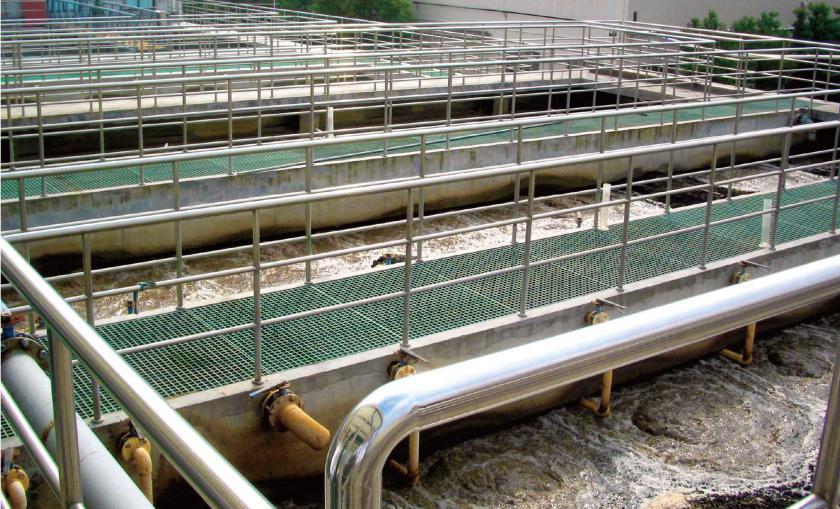

XL type swirl microbubble aerator is used for sewage treatment, especially for industrial field such as papermaking, municipal, textile, pharmaceutical, food processing, animal husbandry and petrochemical.

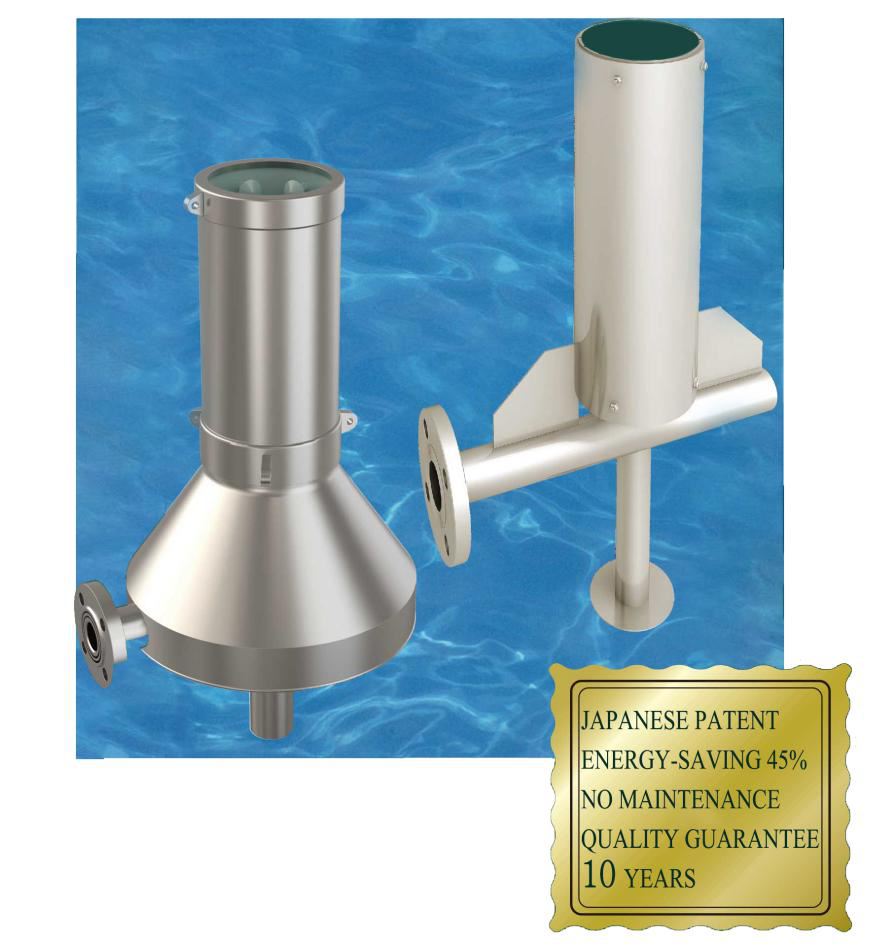

 Swirl microbubble aerator
Main feature Excellent working efficiency 45% energy saving Free dalily maintenance Long-term stable operation |

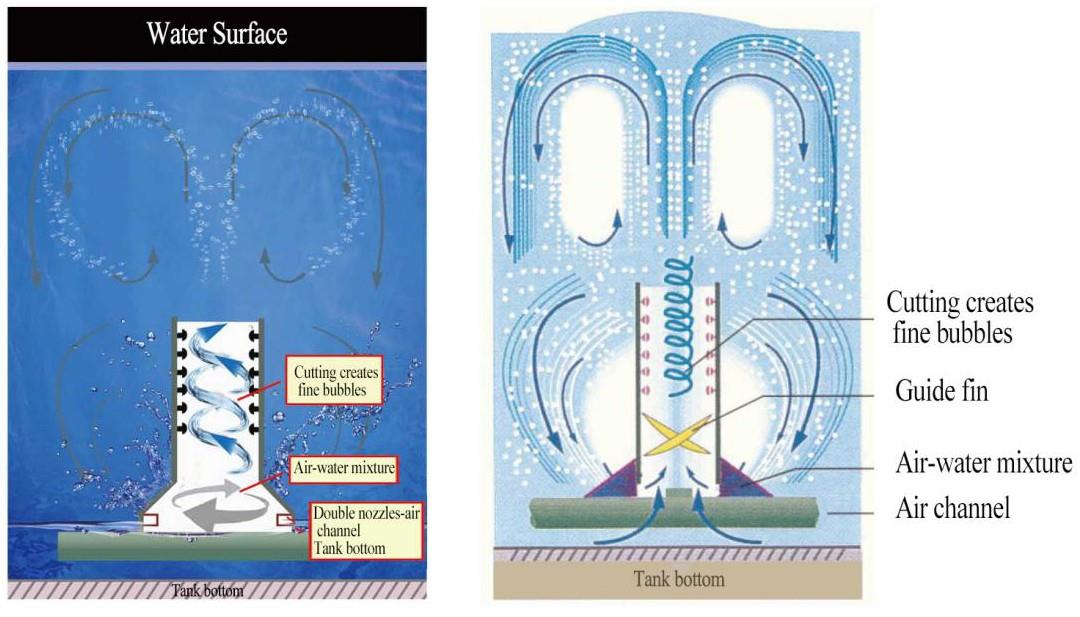

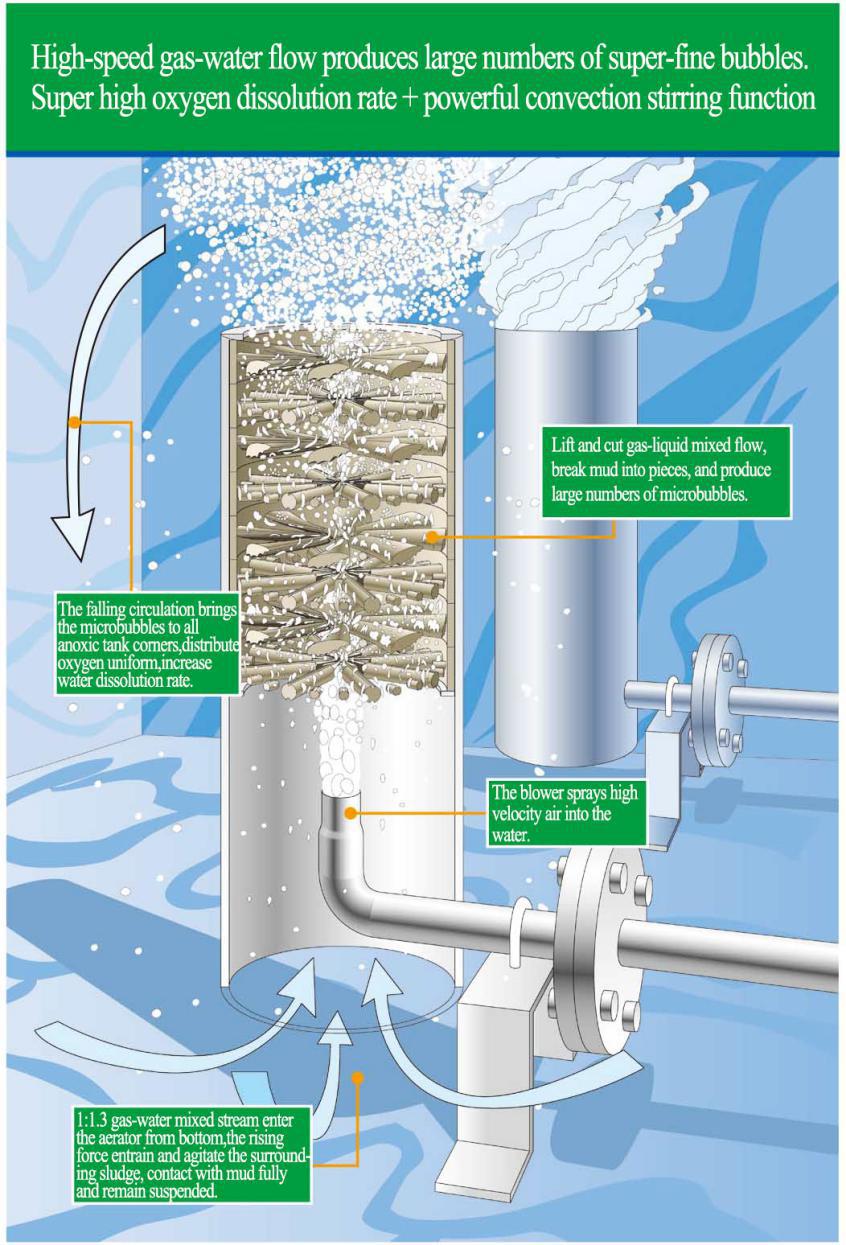

 Excellent working efficiency High oxygen utilization rate; High speed air flow through the interior of the multilayer impact, cutting, formation of a large number of fine air bubbles, increase the gas-water contact area, improving the efficiency of oxygen utilization; Perfect mixing effect; The high-speed 1:1.3 gas-water mixed flow forms a strong lifting force, soaking the sludge and stirring the water body to improve the microbial metabolism efficiency; Stable dissolved oxygen value; The suspended activated sludge is fully combined with oxygen, and the gas-water flow is continuously circulated to ensure uniformity of the aeration tank DO. No oxygenation blind zone; Smaller pressure loss; Large diameter nozzles, pressure loss is extremely small, reduce the fan power consumption. |
 Energy saving 45%, electric-saving 30%,sludge reduce >20% The pressure loss is extremely low, almost 0, which is 5-8% higher than microporous aerator; High oxygen utilization rate, uniform DO, no oxygenation blind zone, ensure the oxygenation performance in the sewage is no different with clear water environment, and the working efficiency won't attenuate over 10 years, which is 15-20% more energy-saving than the microporous aerator; The microbial metabolism efficiency is high, the stirring effect increases the air-water contact surface, thus improves the reaction efficiency; The amount of sludge generated is greatly reduced, the sludge treatment cost is greatly reduced, can achieve energy-saving is 10-30%. |
