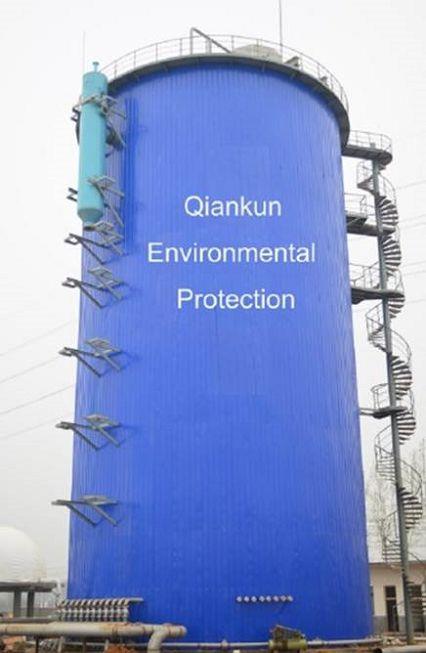

IC Anaerobic Reactor

IC Anaerobic Reactor for industrial effluent treatment

IC anaerobic reactor is regarded as a cost effective way to deal with all kinds of effluent with high pollution load. It adopts internal circulation process; biogas will be produced during the reaction.

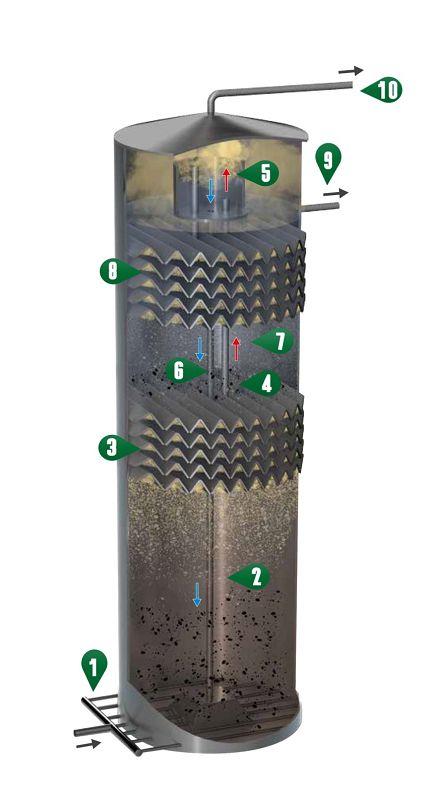

How it works?

A. Inlet wastewater flow into IC anaerobic reactor and mix with granular anaerobic biomass in water distributor;

B. Anaerobic biomass mainly works here, convert organic components into biogas(methane);

C. Biogas is collected in lower phase separator, generating a biogas lift;

D. Together with biogas, wastewater flows up in riser;

E. Biogas leaves the reactor in liquid/gas separator;

F. Water flowing down into distribution system, which is a whole internal circulation;

G. The outlet water is polished in second, upper compartment;

H. Biogas from the second compartment is collected in the upper phase separator;

I. Treated water exits the reactor

J. Biogas is collected.

Features:

● Applied for all kinds of effluent with high pollution load;

● High volume loading, reach to 30kgCOD/m³.d；

● Biogas generating, used as clean energy ;

● Stable and nice outlet water quality;

● High adjustability of high loading variations;

● Vertical tank, small foot print;

● Reliable, self-regulating system, internal circulation system .
