QK mechanical bar screen used as prelimiary treatment of WWTPs, with higher removel rate, self-cleaning fuction sand long-term life span.
Mechanical bar screen for solids removal

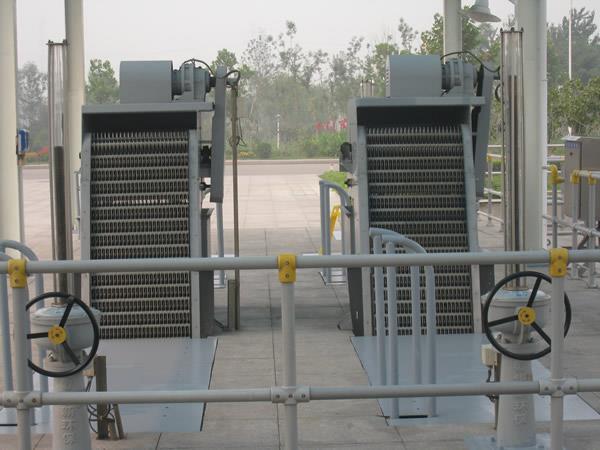

QK mechanical bar screen is used at wastewater treatment plants (WWTP), to removes bigger objects, such as rags, papers, plastic and metals to prevent damage and clogging of downstream equipment, pipes and appurtenances.
Working Principle
The steel bars go rotation motion. It captures waste in water while bars going up, waste falling down while bars going down on the other side of machine, some waste sticking on the bars can be cleaned by a rubber brush. At the scenario of overload, a protection spring will push down to shut down motor and stop working.
Product Features
● More compact structure
● Stable Operation
● Easy handle and automatic cleaning

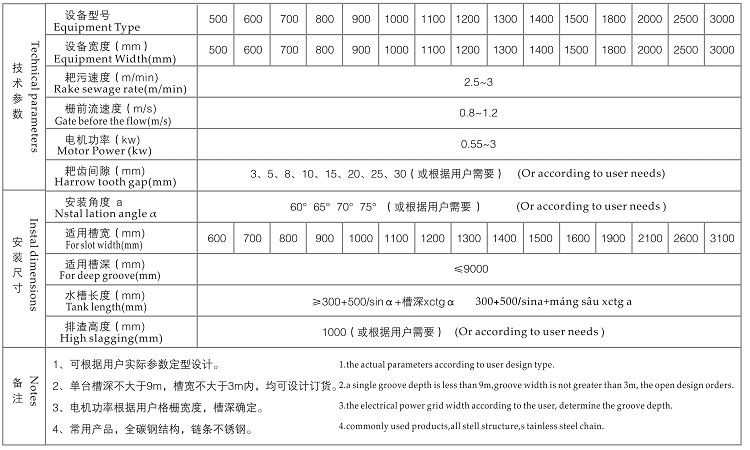

Parameters
Service
7/24 hours on-line uninterrupted service
Installation guidance
One year warranty
FAQ:
1. Q: What's the material of mechanical bar screen?
A: The main body can be stainless 304, or anti-corrosive carbon steel.
2. Q: How should I choose the right model?
A: That's depending on your flow rate and wastewater source. Or you can contact us for help.
3. Q: What's the packing and delivery time?
A: Standard exporting packing in wooden crate, delivery time 15 days.
Hot Tags: mechanical bar screen, China, manufacturers, suppliers, design, price
No Information →
Requested Information before Quote
| Raw wastewater Quality | |
Wastewater source | |
Treatment Capacity | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
Treated Water Quality /Discharge Standard | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
