Guizhou XBS-D-200 water Decanter
The Guizhou XBS-D-200 water Decanter is one of the most successful and reliable products in the range of wastewater treatment equipment available from Guizhou Green Environment Protection Equipment & Engineering Co.Ltd

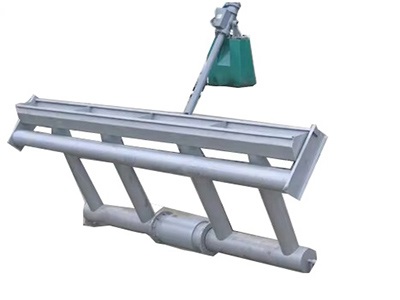

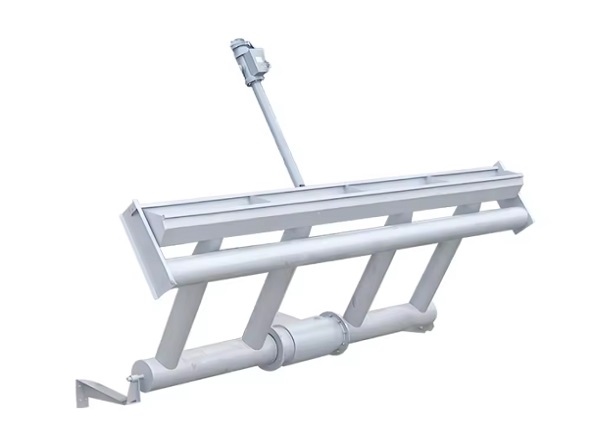

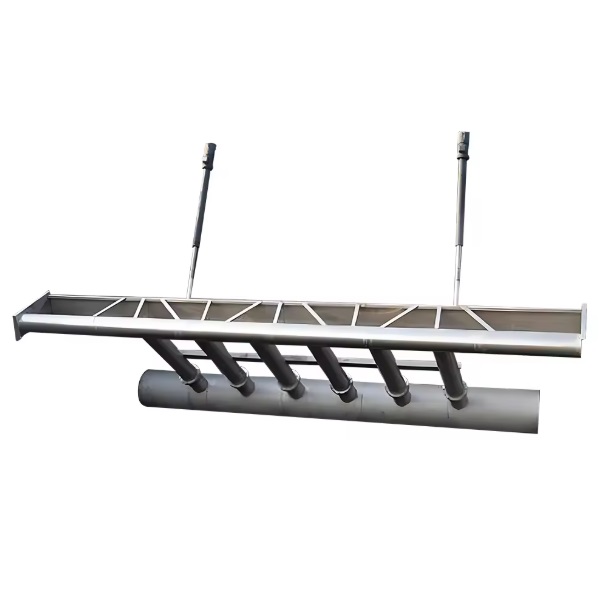

During the settlement period of an intermittent aeration wastewater treatment process, activated sludge settles to the tank bottom, leaving clear treated supernatant on the top. The treated supernatant can be removed effectively with minimal carry-over of solids by the decanter without disturbing the sludge blanket at the bottom of the tank. The rotary decanter consists of a decant trough, weir, floating scum buffer, carrier pipes, rotary collection pipe, submersible support bearings and a drive mechanism.
Guizhou XBS-D-200 water Decanter
In operation, the drive mechanism extends and retracts a drive shaft which actuates an eccentric link arm that rotates the trough up or down in an arc into the supernatant. The trough, carrier and collection pipes are supported at both ends by submersible bearings. The bearings are secured inside bearing housings which are bolted to concrete plinths. The supernatant discharge rate can be controlled over the weir by variable speed control to maintain optimum flow. The floating scum baffles prevents scum from approaching the weir.
The water decanter drive mechanism consists of an electric motor, gearbox, jack mechanism and screwed drive shaft. structural mechanism Rotary Electric Draw stem type. The drive is typically fitted with internally actuated position indicators that allow drive limits to be set for BWL, top park position and over limit safety stops. Optionally positioned transponders can also be fitted. The drive mechanism is normally installed at the end of the tank.
| Drainage Capacity | : | 200 m3/H |
| Weir Crest | : | 4.0m |
| Water Height | : | 1.8m |
| Water Load | : | 30L/m.s |
| Decanting time | : | 1h |
| Motor Power | : | 0.55 |
| Voltage | : | 380V, |
| Frequency | : | 50 HZ |
| RPM | : | 1390 |
| Electric Putter | : | DTC1600-1420-0.78-0.55 |
| Lcmin | : | 2858 |
| Lcmax | : | 4195 |
| Lengthening bar | : | (ss) 1058. |
| Pulling Rate | : | 0.78 mm/s, |
| Push Rate | : | 0.36 mm/s. |
