The QKZP Rotary Disc Filter are suitable mainly for tertiary filtration treatment, the removal of undissolved material from utility, municipal and industrial waste water. Higher Quality Effluent Water and flexible installation choice.
The QKZP Rotary Disc Filter is designed for tertiary treatment filtration of large volumes of wastewater with demands for high quality of cleaned water.
Treatment process
Water flows into the influent pipe of the unit, where it then enters individual filter cartridges. Impurities are caught inside the cartridge and clean water flows out. The ratio of the area used for the installation of a disc filter and the filter area is therefore quite small. It enables filtration from 10μm up to 200 μm mesh size.
Features
● Simple operation, auto feeding, cleaning and controlling and automatic fault alarm system;
● Superior processing, higher working efficiency and more energy saving;
● Cleaning treatment, no chemical or other second pollution introduced;
● Excellent product quality, more than 10-year service spans.

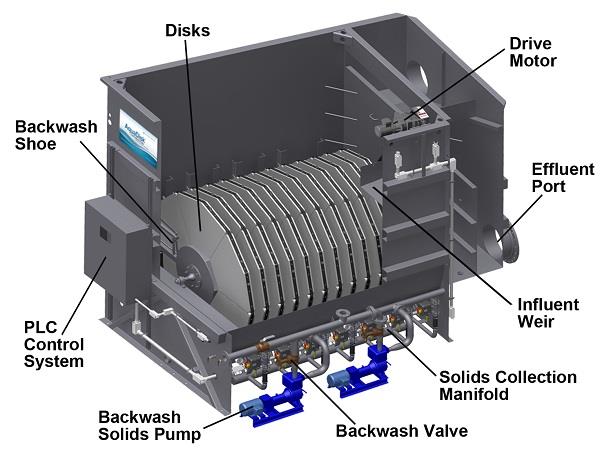

Structures of Rotary Disc Filter
Parameters
Model | Capacity(m³/d) | Disc Diameters(mm) | Filter Area(㎡) | Disc (pcs.) | Power (kW) |
QKZP-1000 | 1000 | 2000 | 5 | 2 | 0.55 |
QKZP-3000 | 3000 | 2000 | 5 | 4 | 0.75 |
QKZP-5000 | 5000 | 2000 | 5 | 6 | 0.75 |
QKZP-8000 | 8000 | 2000 | 5 | 10 | 1.1 |
QKZP-10000 | 10000 | 2000 | 5 | 12 | 1.1 |
QKZP-15000 | 15000 | 2000 | 5 | 18 | 1.5 |
QKZP-20000 | 20000 | 2000 | 5 | 24 | 2.2 |
QKZP-30000 | 30000 | 2000 | 5 | 30 | 3 |
Hot Tags: rotary disc filter, China, manufacturers, suppliers, design, price
Requested Information before Quote
| Raw wastewater Quality | |
Wastewater source | |
Treatment Capacity | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
Treated Water Quality /Discharge Standard | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
