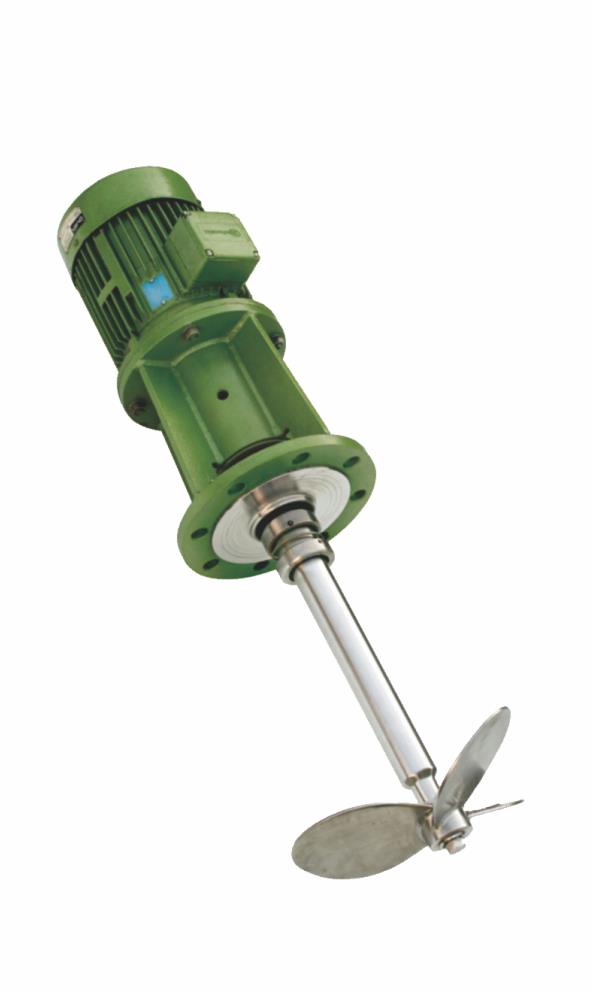

QK-JBJ Flocculant mixer normally used for coagulation stage in flocculation process of water treatment, to produce low tangential flow with mechanical force, also can be used for creating a flow for circulation, nitrification, denitrification, and phosphorus removing.
QK-JBJ Flocculant mixer normally used for coagulation stage in flocculation process of water treatment, to produce low tangential flow with mechanical force, also can be used for creating a flow for circulation, nitrification, denitrification, and phosphorus removing.

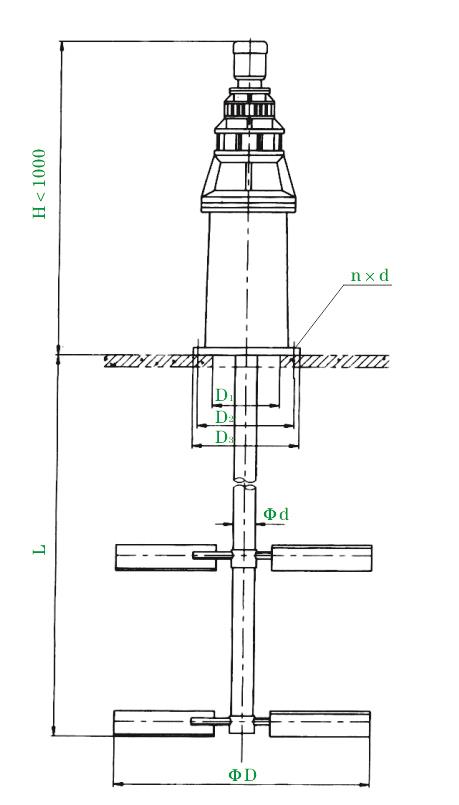

Structures for Flocculant mixer

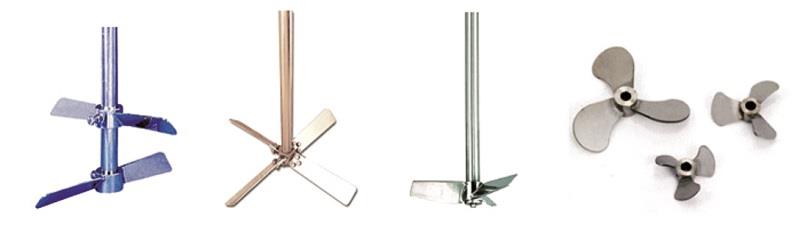

Different mixing paddles
Features
1. Simple structure, reliable operation, no clogging, easy maintenance;
2. Reach a certain mixing intensity with short time;
3. Less water head loss;
4. Adapts to different water quantity.
Parameters
Model | Tank size (m) | Mixer size(mm ) | Rotary speed (r/min) | Power (kW) | |
D | H | ||||
JBJ-300 | 1.2*12*1.6 | 300 | 400 | 102 | 0.55 |
JBJ-350 | 1.5*1.5*1.8 | 350 | 400 | 102 | 0.55 |
JBJ-450 | 1.8*1.8*2.0 | 400 | 600 | 88 | 1.5 |
JBJ-600 | 2.2*2.2*2.2 | 500 | 600 | 88 | 2.2 |
JBJ-800 | 2.4*2.4*2.4 | 600 | 800 | 58 | 3.0 |
JBJ-900 | 3.0*3.0*3.0 | 800 | 800 | 46 | 3.0 |
JBJ-1000 | 4.0*4.0*4.0 | 900 | 1000 | 46 | 3.0 |
FAQ:
Q: Are you trading company or manufacture?
A: We are professional manufacture for wastewater treatment equipment over 16 years.
Q: Can you customize Flocculant mixer for us?
A: Yes, we can design and manufacture as your exactly requirement.
Q: What is the delivery time?
A: 15 working days after down payment.
Q: Do you have after-sales service?
A: We provide 1 year free warranty, and 7/24 technical on-line service support.
