Biological Sludge scraper in wastewater treatment system

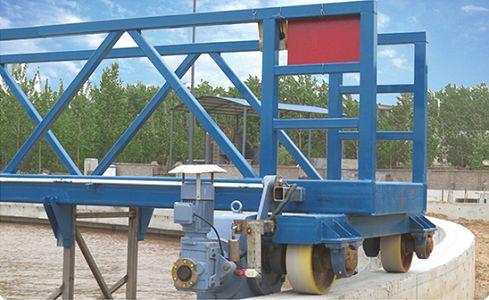

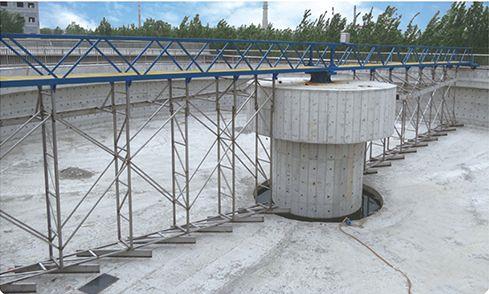

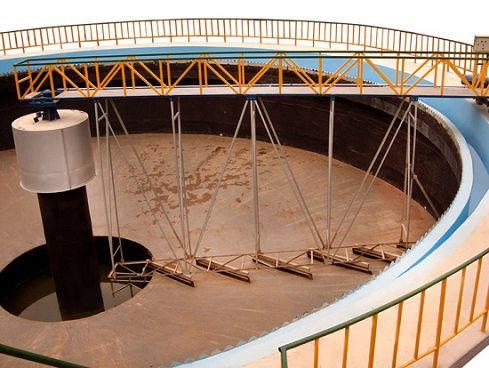

The function of sludge scraper is to thicken solids /sludge and reduce sludge volume for further treating and processing. Slowly moving vertical Sludge scraper is installed on a main beam which is moved around the circular tanks. Untreated water is pumped in from the center pit of the tank, which causes an overflow of up clean water and sludge concentrating in the bottom, concentrated sludge then removed from the bottom at a continuous low speed.
Applications
QK Sludge scraper can be customized for various of industries wastewater treatment plants: pulp and paper effluent, food and beverages wastewater, refinery wastewater, municipal sewage, etc. As a result of our exquisite design, high quality products and outstanding customer service, we gained global sales of sludge scraper sales network reaching Iran, India, Egypt, Thailand, Malaysia, Vietnam, Ethiopia, Russia etc.
● Primary sludge clarifier
● Secondary activated sludge clarifier and sludge return
● Tertiary sludge clarifier
Features
● Center feed, peripheral overflow
● 304 SS material underwater part
● Two model: full bridge and half bridge walkways, fit for different size of clarifier tanks.
● Extended beach scum troughs with flushing
● Factory direct fabricated, art equipment and fabrication techniques
Parameters
Type | Tank Diameter (m) | Tank depth (m) | Line speed (m/min) | Power (kW) |
QK-ZG12 | 12 | 3.5 | 1-2 | 0.18 |
QK-ZG14 | 14 | 3.5 | 1-2 | 0.18 |
QK-ZG16 | 16 | 3.5 | 1-2 | 0.25 |
QK-ZG18 | 18 | 4.0 | 1-2 | 0.25 |
QK-ZG20 | 20 | 4.0 | 1-2 | 0.37 |
QK-ZG25 | 25 | 4.0 | 1-2 | 0.37 |
QK-ZG30 | 30 | 4.5 | 1-2 | 0.55 |
QK-ZG36 | 36 | 4.5 | 1-2 | 0.55 |
QK-ZG42 | 42 | 4.5 | 1-2 | 0.75 |
QK-ZG48 | 48 | 4.5 | 1-2 | 0.75 |
QK-ZG56 | 56 | 4.5 | 1-2 | 1.10 |
Hot Tags: sludge scraper, China, manufacturers, suppliers, design, price
← No Information
Requested Information before Quote
| Raw wastewater Quality | |
Wastewater source | |
Treatment Capacity | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
Treated Water Quality /Discharge Standard | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
