Traveling bridge clarifier
QK-HG Traveling bridge clarifier is applied for removing setting solids and floating matters in square clarifier tank. The sludge at the bottom will be scraped to the pump suction port. Combined with siphon and pump suction, the sludge will be removed while walking.
Working Principle:

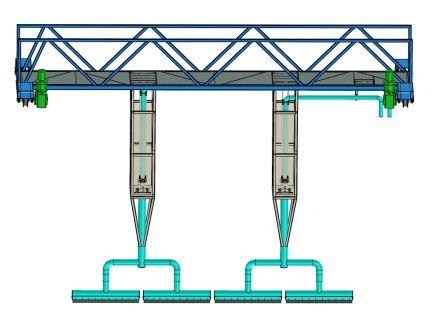

QK-HG Traveling bridge clarifier move from one side of tank to the other side with two driving trolley, sucking while moving, when reach to end, back moving and sucking.
The suspension enters from beginning of rectangular clarifier and spreads to the tank; the particles weight than water will be settled down on bottom, and is sucked into the pipe by the suction nozzle then pumped to sludge thickening tank.
Electric supply line and control line can be customized as slide wire or cable.
Features
● Submersible sludge sucking pump, no clogging, light weight, no shaft vibration issue;
● Each suction system installed with a Submersible sludge sucking pump;
● Pump sucking & siphoning;
● No evacuating device, auto controlling system, easy handle and maintenance;
Parameters
Model | Tank width(m) | Tank depth(m) | Speed(m/min) | Motor(kW) | Rail model |
QK-HG4 | 4 | 3-5 | 1-1.5 | 0.25 | 22kg/m |
QK-HG6 | 6 | 3-5 | 1-1.5 | 0.37 | 22kg/m |
QK-HG8 | 8 | 3-5 | 1-1.5 | 0.55 | 24kg/m |
QK-HG10 | 10 | 3-5 | 1-1.5 | 0.37*2 | 24kg/m |
QK-HG12 | 12 | 3-5 | 1-1.5 | 0.37*2 | 24kg/m |
QK-HG15 | 15 | 3-5 | 1-1.5 | 0.55*2 | 30kg/m |
QK-HG18 | 18 | 3-5 | 1-1.5 | 0.55*2 | 30kg/m |
QK-HG20 | 20 | 3-5 | 1-1.5 | 0.75*2 | 30kg/m |

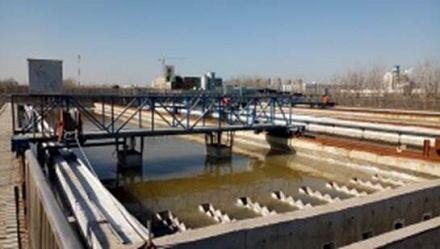

Working photos
Hot Tags: traveling bridge clarifier, China, manufacturers, suppliers, design, price
Requested Information before Quote
| Raw wastewater Quality | |
Wastewater source | |
Treatment Capacity | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
Treated Water Quality /Discharge Standard | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
