QK Peripheral drive Clarifier is installed on medium and large size circular setting tanks in wastewater treatment plants. Feed water passes through the center pillar from bottom to the top, then distribute evenly into tank.
Peripheral Drive Clarifier in WWTPs
QK Peripheral drive Clarifier is installed on medium and large size circular setting tanks in wastewater treatment plants. Feed water passes through the center pillar from bottom to the top, then distribute evenly into tank. Outlet water overflow though weir around tank, which keeps a stable water quality and quantity.
Features
A. Truss bridge structure, more economical and weight light；
B. Lower operation cost, easy maintenance and management;
C. Advanced transmission device, simple installation;
D. Safe and reliable, over-torque protection for option, when torque reaches to a certain place, it will give alarms and stop working;
E. PLC control system for option and customized start/ stop time.
Structures and Principles

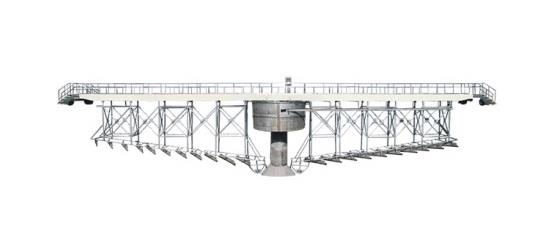

Peripheral drive Clarifier is composed of: a mobile truss beam, two end driving trolley, two rotations with peripheral driving system, scrapers, suckers, scum skimmers, flow guidance, sludge collectors, center pit, electric cables and control cabinet.
The sludge feed in from top middle pillar (deviated by the weir in order to optimize the thickening), sludge scraper blades remove the sludge accumulated on the bottom and collect it in a central pit wherefrom, by a pump, is conveyed to the outlet though a pipe. Outlet sludge can return or disposal to sludge thickening tank. Above scum is skimmed to collection bucket for further disposal.
Parameters
Type | Tank Diameter(m) | Tank depth(m) | Line speed(m/min) | Power(kW) |
QK-ZGX12 | 12 | 3.5 | 1-2 | 0.18 |
QK-ZGX14 | 14 | 3.5 | 1-2 | 0.18 |
QK-ZGX16 | 16 | 3.5 | 1-2 | 0.25 |
QK-ZGX18 | 18 | 4.0 | 1-2 | 0.25 |
QK-ZGX20 | 20 | 4.0 | 1-2 | 0.37 |
QK-ZGX25 | 25 | 4.0 | 1-2 | 0.37 |
QK-ZGX30 | 30 | 4.5 | 1-2 | 0.55 |
QK-ZGX36 | 36 | 4.5 | 1-2 | 0.55 |
QK-ZGX42 | 42 | 4.5 | 1-2 | 0.75 |
QK-ZGX48 | 48 | 4.5 | 1-2 | 0.75 |
QK-ZGX56 | 56 | 4.5 | 1-2 | 1.10 |

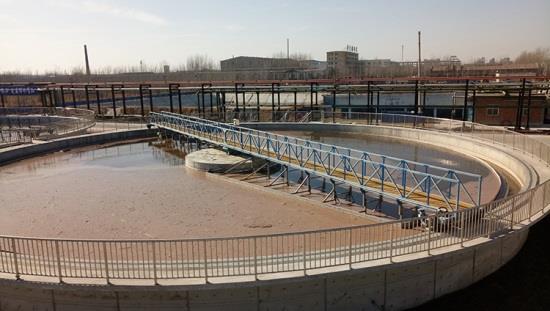

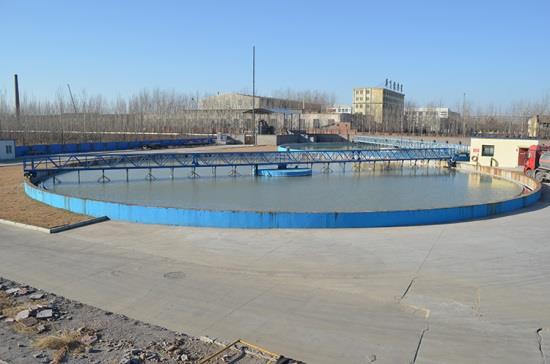

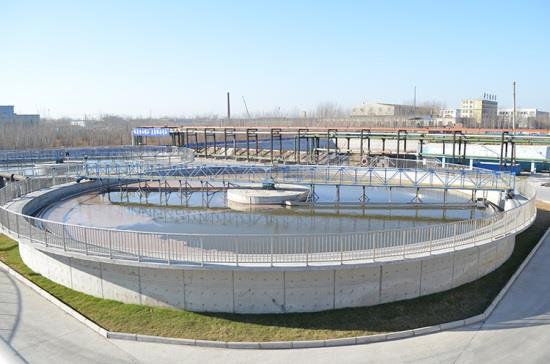

Project reference
Hot Tags: peripheral drive clarifier, China, manufacturers, suppliers, design, price
No Information →
Requested Information before Quote
| Raw wastewater Quality | |
Wastewater source | |
Treatment Capacity | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
Treated Water Quality /Discharge Standard | |
COD (mg/L) | |
BOD (mg/L) | |
SS (mg/L) | |
Ammonia (mg/L) | |
Phosphorus (mg/L) | |
Other Values | |
