Screw Press Dehydrator

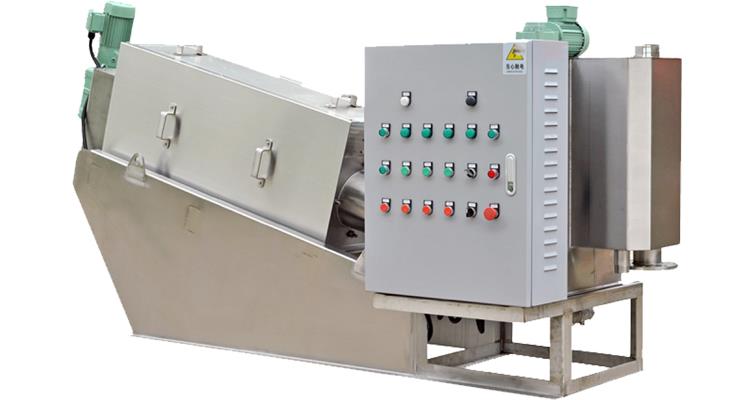

Screw press dehydrator

QK Screw press dehydrator is applied for thickening and dewatering of sludge in WWTPs, with features of small footprint, lightweight and automatic operation with minimal maintenance. The water content of discharge solids is about 80%, for sludge from STP.

Features of screw press dehydrator

● Simple processing, low investment and more energy-efficient;

● Auto control system, more convenient and accurate operation;

● Unique flocculating chemical, higher dewatering performance;

● Lower running cost;

● Wildly applications in varies industry and sewage treatment plant.

How it works?

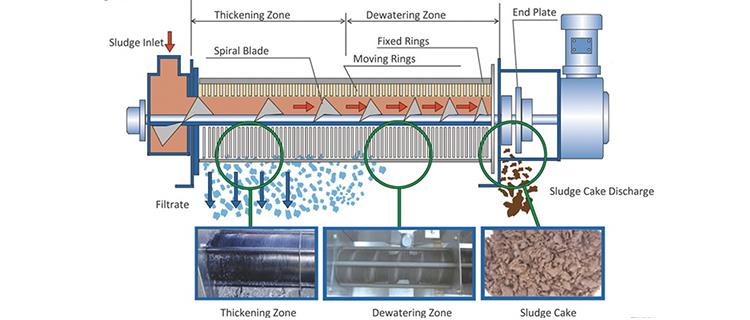

Sludge feed to filter cartridge from inlet, then moves forward under pushing force between spiral blade and moving rings. As the decreasing of space in each ring, the pressure goes higher, and then filtration goes down by gravity, solids part screw up then discharge from outlet.

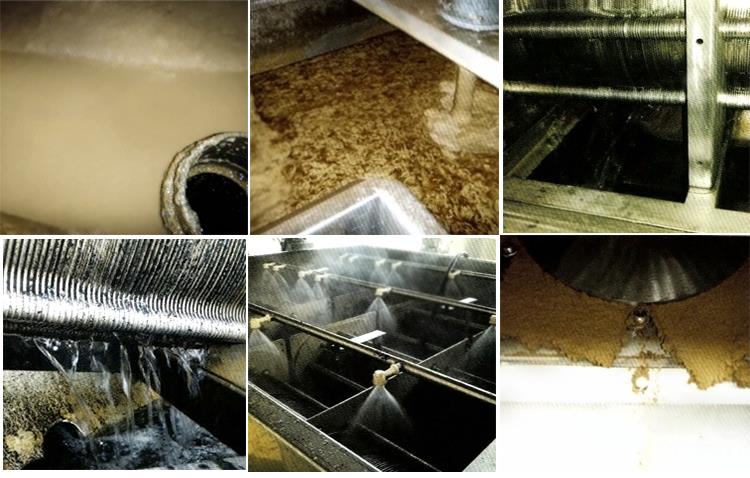

Screw press dehydrator work process

Parameters

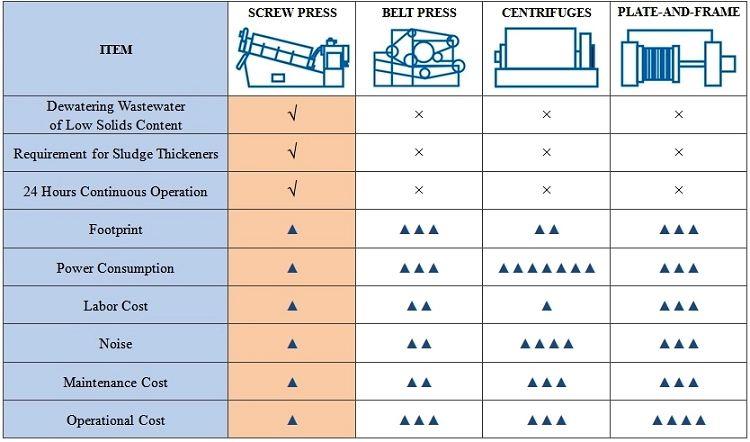

Benefits:

● Lower operation cost: 40%lower than belt filter press, 20% lower than centrifuge;

● More power saving: less than 5% of centrifuge;

● More water saving: 0.1% of belt filters press;

● More chemical saving: about 60%belt filter press and centrifuge;

● More compact structure: 60% space saving of dewatering room;

● No-clogging: processing the fat & oil and fiber sludge perfectly.
